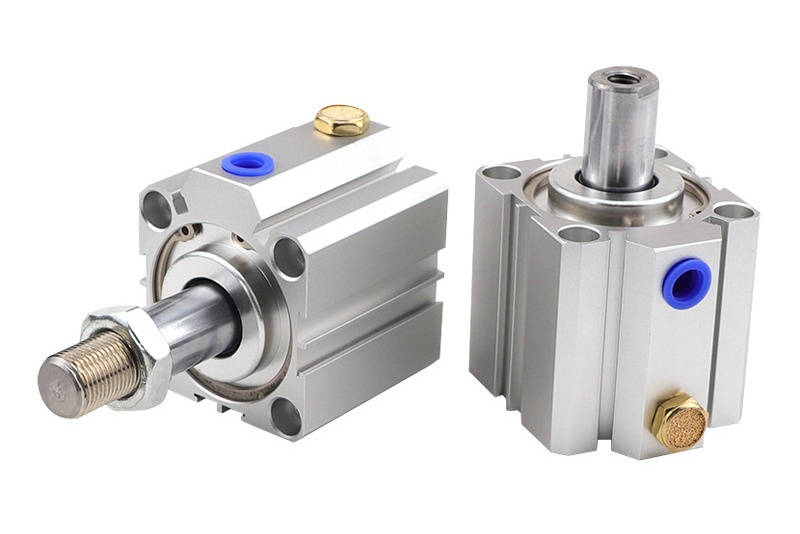

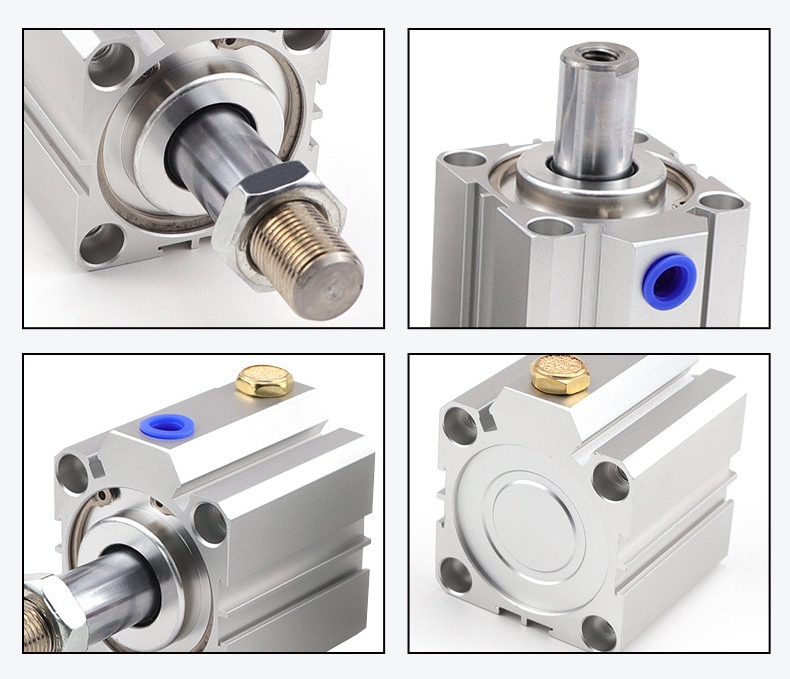

STA Series Air Cylinder Thin Type Pneumatic Air Cylinder Single Acting Female Male Thread Pneumatic Cylinder


Benefits: Quick refunds on orders under US $1,000
Maximum Stroke: 5-130mm
Shaft Diameter: 12mm, 16mm, 20mm, 25mm, 32mm
Model Number: STA
Lead Time

Quantity (pieces)

1 - 10

> 10

Lead time (days)

5

To be negotiated

Customization:
Customized logo(Min. order 50 pieces)
Customized packaging(Min. order: 100 pieces)
Availability:

Key attributes

Other attributes

Applicable Industries Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Weight (KG) 1
Video outgoing-inspection Provided
Machinery Test Report Not Available
Marketing Type Ordinary Product
Warranty of core components 1 Year
Core Components Bearing
Place of Origin Zhejiang, China
Condition New
Warranty 1 Year
Standard or Nonstandard Nonstandard
Structure Piston Cylinder
Power Pneumatic
Body Material Aluminum alloy, stainless steel, brass
Brand Name EVANC
Working medium Ari
Acting type Single Acting
Operating Pressure Range 0.2~0.9MPa
Proof Pressure 1.5 MPa
Operating Temperature Range -20~80 ℃
Operating Speed Range 50~500 mm/s


PRODUCT

3_看图王6

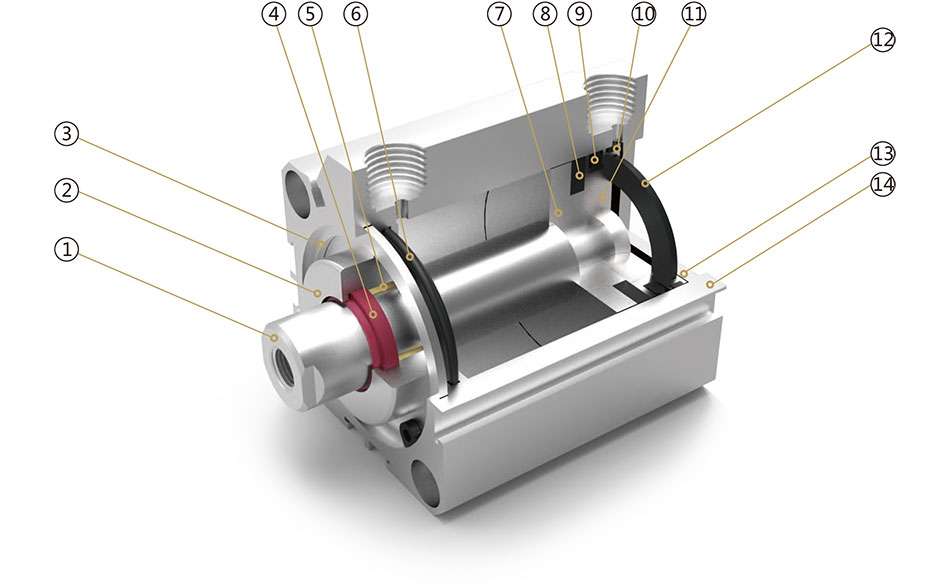

H126cab97f4d3473b8fe119ef2c740b04e (1)


NO.
Name
NO.
Name
1
Piston rod
8
Magnet
2
Front cover
9
Piston seal
3
Clip
10
Anti-friction seal
4
Shaft seal
11
Magnet base
5
DU bearing
12
Anti-collision gasket
6
O ring
13
Back cover
7
Piston
14
Body


Order Code:

SDA-Ordering-Code


SP

Bore(mm)
12
16
20
25
32
40
50
63
80      100
Operation
Double Acting
Working Medium
Air
Operating Pressure Range
0.1~1.0MPa
Proof Pressure
1.5 MPa
Operating Temperature Range
-20~80 ℃
Operating Speed Range
30~500 mm/s
30 ~ 350 mm/s
30 ~ 250 mm/s
Port Size
M5×0.8
G1/8"
G1/4"
G3/8"

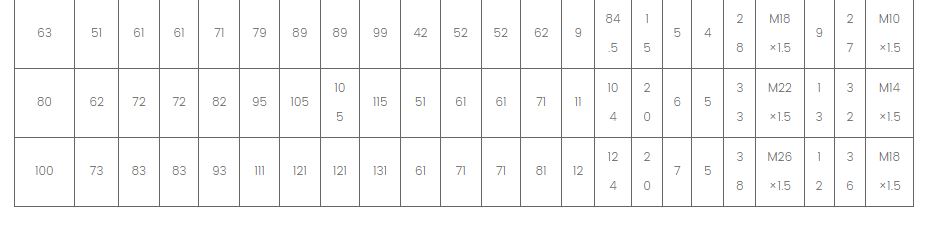

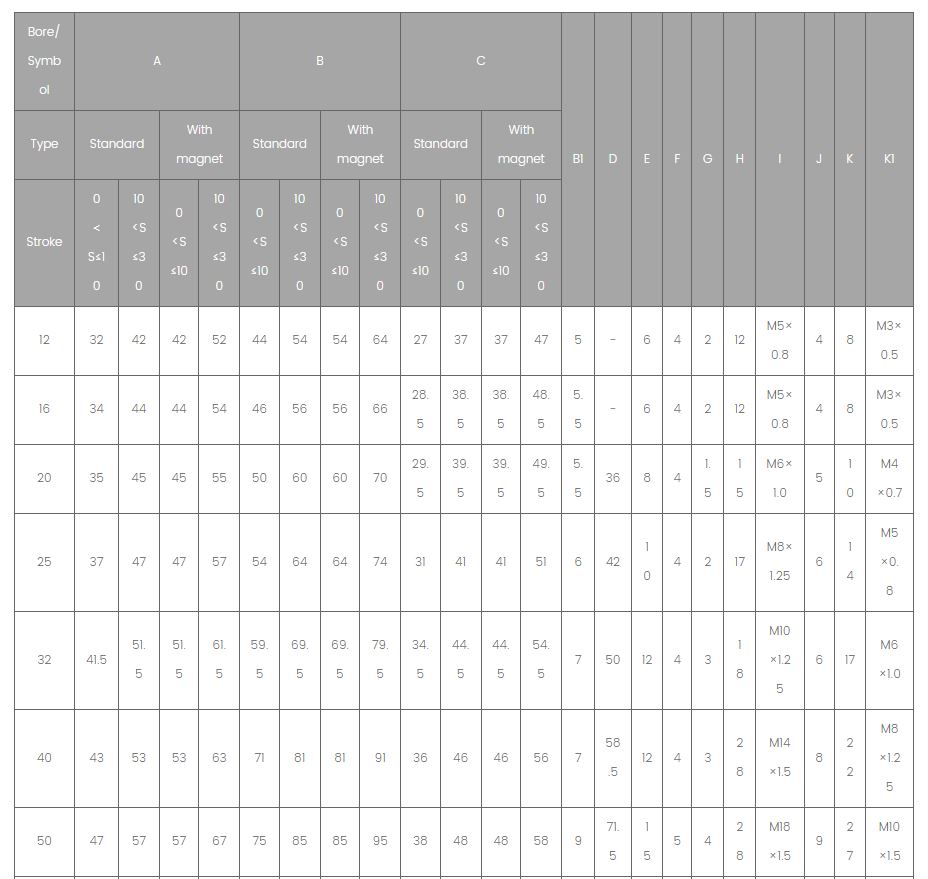

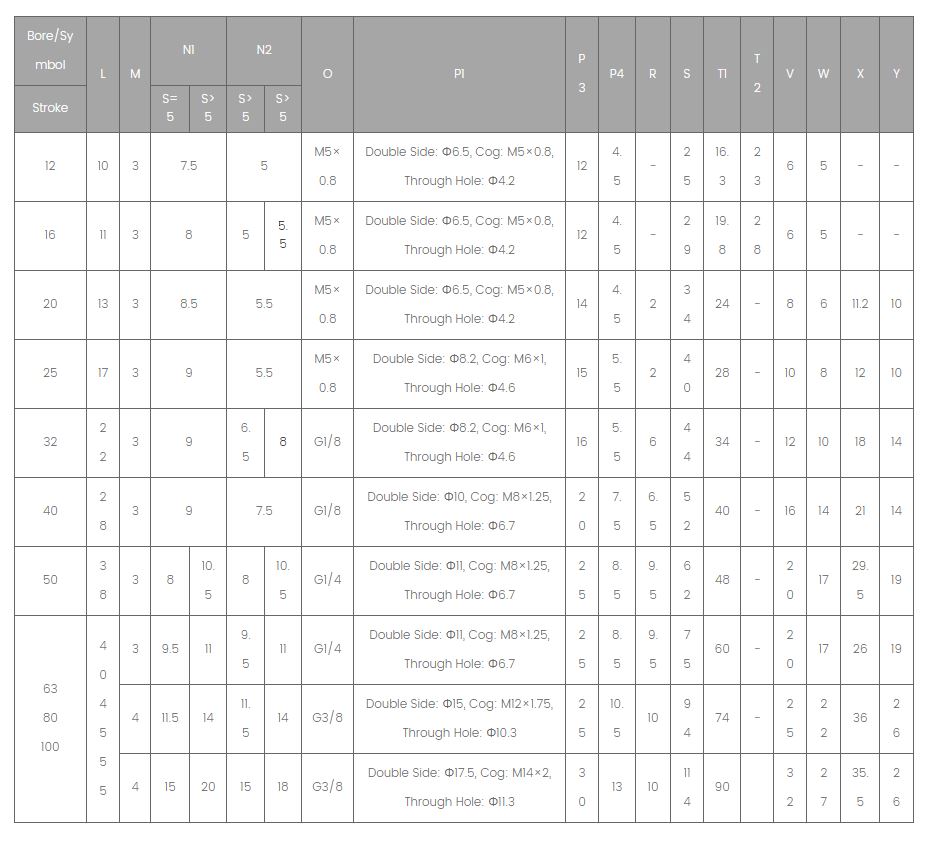

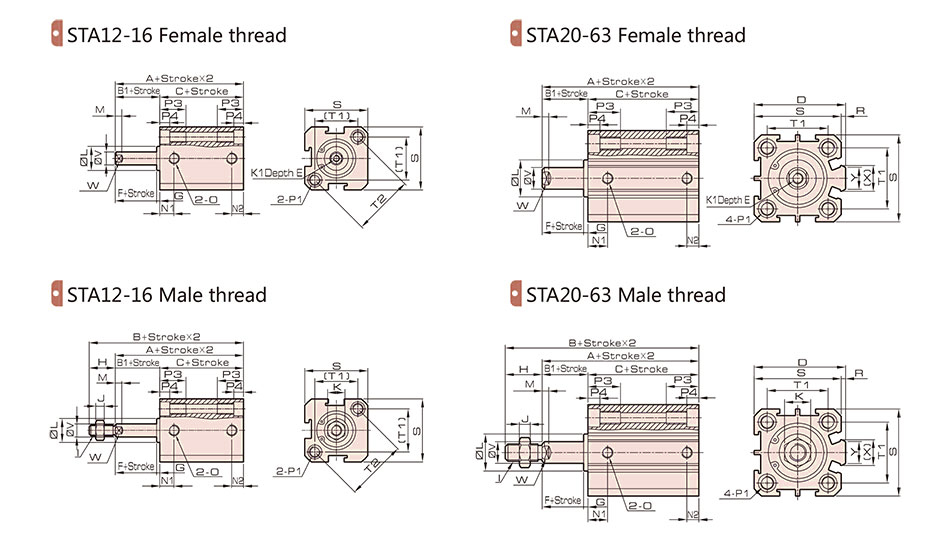

SDA-Overall-Dimension-3DM1DM2DM3
