Quantity (pieces) | 1 - 10 | > 10 |
Lead time (days) | 5 | To be negotiated |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Weight (KG) | 2 |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Not Available |
| Marketing Type | New Product 2020 |
| Warranty of core components | 1 Year |
| Core Components | Bearing |
| Place of Origin | Zhejiang, China |
| Condition | New |
| Warranty | 1 Year |
| Standard or Nonstandard | Standard |
| Structure | Piston Cylinder |
| Power | Pneumatic |
| Body Material | Aluminum |
| Brand Name | EVANC |

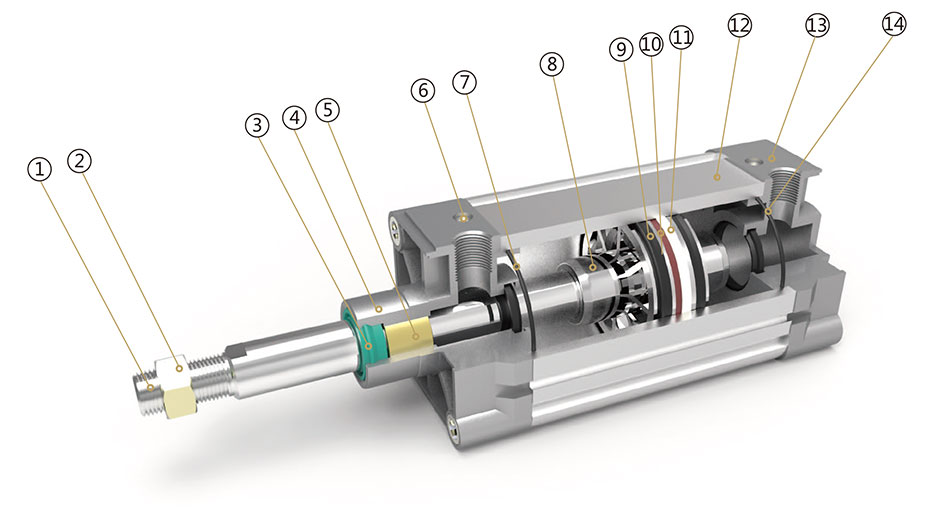

| NO. | Name | NO. | Name |
| 1 | Piston rod | 8 | Piston |
| 2 | Hexagon nut | 9 | Yring |
| 3 | Shaft seal | 10 | Magnet |
| 4 | Front cover | 11 | Anti-friction ring |
| 5 | Copper tube | 12 | Barrel |
| 6 | Cushion adjust screw | 13 | Back cover |
| 7 | Cushion seal | 14 | 0 ring |

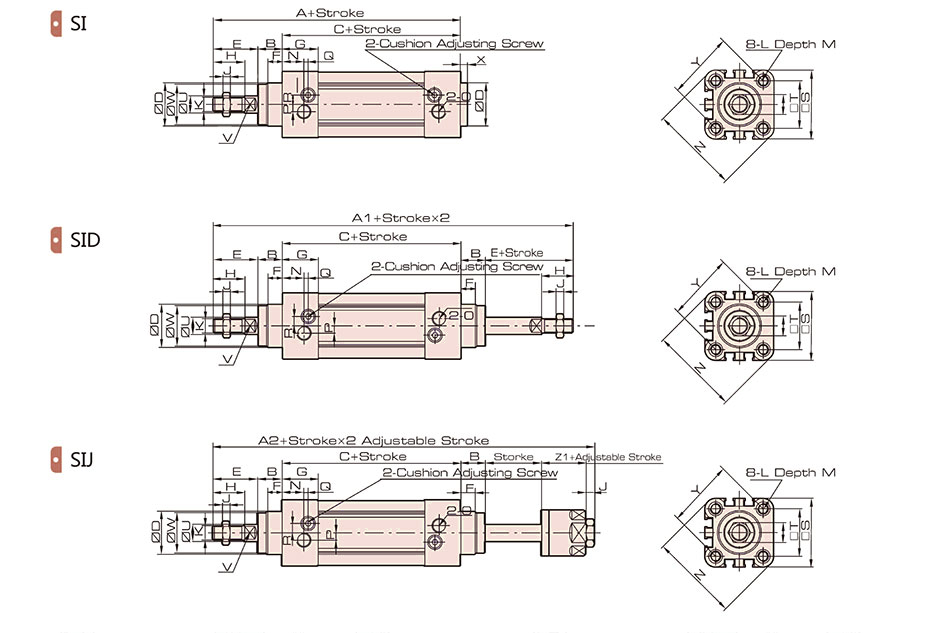

Order Code：
| Bore（mm） | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| Operation | Double Acting | ||||||
| Working Medium | Air | ||||||
| Mountings | Basic FA FB CA CB LB YB | ||||||
| Operating Pressure Range | 1～9.0 Kgf/cm² | ||||||
| Proof Pressure | 13.5 Kgf/cm² | ||||||
| Operating Temperature Range | -20～80℃ | ||||||
| Operating Speed Range | 50～800mm/s | ||||||
| Cushion | Adjustable Cushion | ||||||
| Adjustable Cushion Stroke | 20 mm | 26 mm | |||||
| Port Size | G1/8" | G1/4" | G3/8" | G1/2" | |||
Ningbo Evanc Pneumatic Technology Co., Ltd. is a leading manufacturer and supplier of pneumatic components and systems based in Ningbo, China. With decades of experience in the industry, we are committed to designing and producing high-quality products that meet the needs of our customers worldwide. Our product catalog includes a wide range of pneumatic components, such as cylinders, valves, fittings, and tubing, as well as complete pneumatic systems. All of our products are manufactured to strict quality standards and undergo rigorous testing to ensure reliability and durability. At Ningbo Evanc Pneumatic Technology, we prioritize customer satisfaction above all else. Our knowledgeable and responsive customer service team is available to assist customers with any questions or issues they may have. We also offer customization services to meet the specific needs of our clients. We are continually investing in research and development to stay at the forefront of the industry and develop innovative solutions for our customers. Our international and professional team enables us to serve customers all over the world and provide timely support. Thank you for considering Ningbo Evanc Pneumatic Technology Co., Ltd for your pneumatic needs.
We look forward to cooperate with you！
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. How to customize?
Make an inquiry → customize drawings and samples → use scenario notification → receive our product design proposals → negotiate details → confirm samples → sign contract and pay deposit → mass production → get the goods ready → deliver → further cooperation.
2. How can we guarantee quality?
We can provide sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Cylinder,Solenoid Valve,Pneumatic Fitting,Pneumatic Hose,Air Source Treatment Unit
4. Why should you buy from us not from other suppliers?
We have 11 years of experience and have own factory with a professional team to continuously innovate and improve products to meet customer needs. We focus on product reliability and durability, which helps reduce downtime and improve customer productivity.
